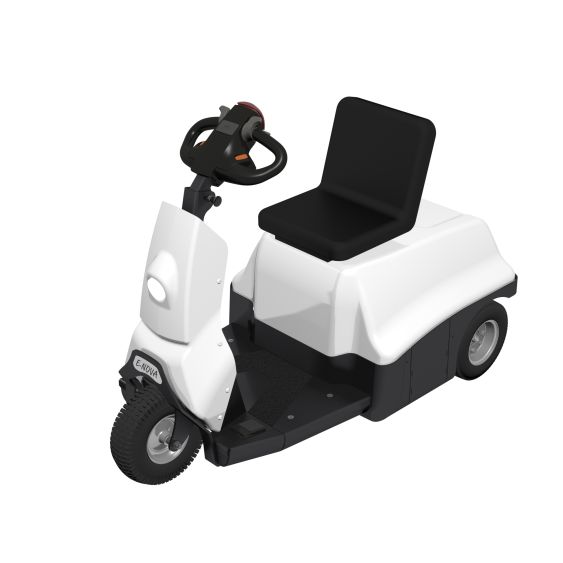

E-Nova electric tow vehicle
The E-Nova is a new line of electric tow vehicles. Due to its modern design and powerful drive, it performs well in public places such as airports, stations, and medical centers.
The E-Nova is supplied with a comfortable chair that can be adjusted to sit closer to or further from the steer. The steer can also be adjusted at three different angels so the optimal driving position can easily be set.
The E-Nova comes with an easy to use tiller head which can be handled by anyone after simple instructions. By pushing the handle on the tiller head forward, the electric tow vehicle will start driving forward. The same handle is used to drive backward by pushing the handle toward you. Extra actions to switch between driving forward or backward such as pressing or switching a button are not necessary. The speed of the electric vehicle can be set to two different maximums with a button on the tiller head. The E-Nova has a maximum speed of 12 km/h forward on the fast haze stand to drive fast through environments with a clear overview. On the slow turtle stand, it drives at a maximum speed of 7 km/h to drive safely through environments with an unclear view and/or a lot of people. The maximum speed of the two buttons can, per request, be altered at our factory by adjusting the software. The tiller head is also supplied with a hooter and an emergency button to break the electronic circuit.
The frame of the E-Nova is made of steel with a sustainable powder-coated finish and functions as robust protection for the vital parts and the plastic caps. The plastic caps are formed from ABS with a top layer of PMMA to protect the caps from the weather and chemical compounds. This makes the E-Nova, together with the air wheels, suitable for indoor and outdoor driving. It is possible to add your own company logo and colors to the caps to make the E-Nova perfectly fit your company style. For more information on this, you may contact our customer service.
For the design of the back of the E-Nova, you can choose between two different caps. By default, it will be delivered with a high back which allows for ample storage under the chair and cap. The storage can be accessed by pulling a handle at the side of the electric vehicle which will lift the complete cap including the chair. The storage space is 60 x 35cm and can be used to store tools and other items. Per request, we deliver the E-Nova with a lower back to add space for accessories such as a toolbox or crate at the back of the electric vehicle. The storage space under the chair can still be used with this variant, but will have a size of 35 x 35cm.
The E-Nova comes standard with two gel batteries. This can be changed to one lithium-ion battery per request. The batteries are easy to access and detach from the electric vehicle. This will give you the possibility to switch the batteries and keep the vehicle operational for 24 hours a day without the need for charging. The battery charger is integrated into the vehicle and has a cable of 6 meters long, so you do not need to have a fixed place for the vehicle to charge.
The back of the E-Nova can be mounted to other machines with the use of a coupler such as a hook or a towing ball. A complete list of our couplers can be found at couplers.
Technical specifications


Dimensions
1578 x 800 mm


Towing capacity
3000 KG


Turning circle
2,6 m


2 Speeds
6 Km/h 11 Km/h
| Country of origin | : | Netherlands |
| Drive | : | Transaxle |
| Maximum weight driver | : | 125 Kg |
| Nominal tensile force | : | 1080 N |
| Towing capacity | : | 3000 Kg (according VDI 2198) |
| Weight | : | 325 Kg |
| Material (frame) | : | Steel |
| Material (hoods) | : | ABS with a PMMA top layer |
| Finishing | : | Powder coating |
| Motor | : | Asynchronous motor |
| Power | : | 1500 Watt |
| Speed reverse (Hare) | : | 5,5 Km/h |
| Speed reverse (Turtle) | : | 2,8 Km/h |
| Type Battery | : | Lithium |
| Battery voltage | : | 24 Volt |
| Battery charger | : | 110/230V (Input) |
| 24V-12A (Output) | ||
| Control | : | i-Drive (200A) |
| LED headlight |
: | 12V - 150 Lumen |
